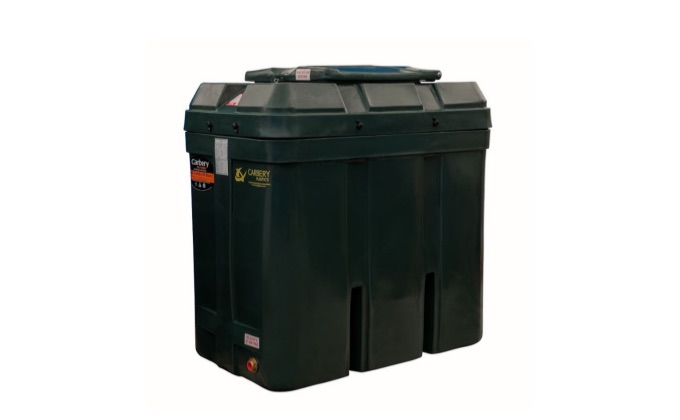

650 Litre Rectangular Slimline Bunded Oil Tank

Specifications

• Length: 1200mm
• Width: 750mm
• Height: 1240mm
• Weight: 78kg
• Nominal Capacity: 611 Litres
• Brimful Capacity: 643 Litres
• Fill Point Diameter: 50.8mm (2") BSP
• Outlet Diameter: 25.4mm (1") BSP
• Outlet Position: Bottom

• *Nominal capacity denotes 95% of brimful volume as per EN 13341 |As per OFTEC requirements all UK Single Skin Tanks are supplied with a 50mm (2") diameter fuel tank vent | As per OFTEC requirements all UK Single Skin Tanks are supplied with a 50mm (2") BSP Offset Fill Connection - Lockable.
• *Top Outlet Option Available

Benefits

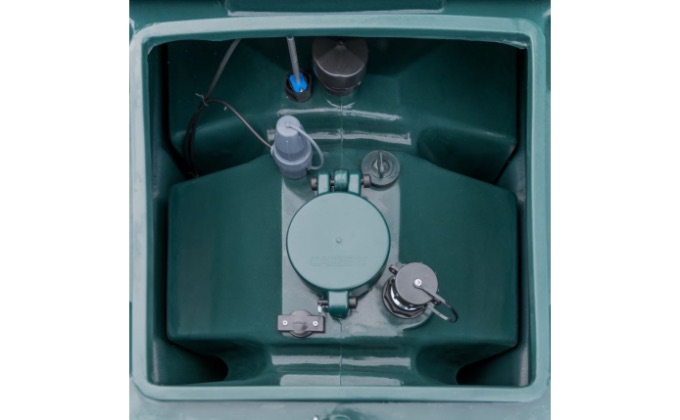

• 2" lockable oil tank fill point
• 5" lockable oil tank inspection point
• Lockable access lid
• 32mm. dia. electronic gauge point
• Tank Contents Dipstick
• 1" dia. BSP bottom outlet
